Navigating The Urban Landscape: Understanding Pedestrian Sidewalk Heights And Design
More Than Just a Path: The Purpose of Well-Designed Sidewalks
At its core, a sidewalk, or "banqueta" as it's known in many Spanish-speaking regions, is defined as a longitudinal strip serving for the circulation and stay of pedestrians. These essential urban elements are meticulously planned to offer a safe and unobstructed passage for people moving on foot. Documents outlining public space criteria, particularly concerning sidewalks, emphasize their role in urban order. They provide tools for both public and private actors involved in sidewalk design and construction, helping them define the precise geometries and characteristics needed for effective pedestrian infrastructure. The goal is always to create spaces that are not only functional but also inviting and inclusive.The Critical Dimension: Sidewalk Widths for Pedestrian Flow
While our focus is on "altura" (height), it's impossible to discuss effective sidewalk design without first understanding the crucial role of width. The width of a pedestrian sidewalk directly impacts the ease of movement, the capacity for foot traffic, and the overall comfort of pedestrians.The Pedestrian Circulation Strip: Your Walking Space
Every sidewalk is typically composed of distinct longitudinal strips parallel to the roadway. One of the most vital of these is the pedestrian circulation strip. This is the dedicated space for pedestrian movement, and ideally, it should remain entirely free of any obstacles. Regulations often specify minimum width requirements to ensure adequate flow. For instance, some standards suggest that the clear width for pedestrian circulation on sidewalks should be at least 1.80 meters. This generous width allows for comfortable two-way pedestrian traffic, accommodating individuals, families, and even those using wheelchairs or strollers without feeling cramped. However, minimums can vary depending on local regulations and urban contexts. Many urban codes, including those in our country, state that the absolute minimum width for a sidewalk intended for pedestrian transit is 90 centimeters. When considering the total width of the sidewalk, including other zones, a minimum of 1.20 meters is often required. For example, the law in Mexico City (CDMX) specifies that the space for walking must have a minimum width of 1.20 meters. In cases of smaller roadways or more constrained urban settings, the minimum dimensions can be reduced to 90 centimeters, highlighting the need for adaptability in urban planning.Adapting to Urban Contexts: Wider Sidewalks
In areas with high pedestrian traffic or where sidewalks are designed to accommodate more than just movement, such as commercial districts or public plazas, widths can be significantly larger. For sidewalks measuring 6.00 meters or more in total width, the clear pedestrian circulation area can extend up to 3.00 meters. This allows for greater capacity, more comfortable passage, and the potential integration of urban furniture or green spaces without impeding pedestrian flow.Bridging the Gap: Curb Heights and Accessibility
Now, let's turn our attention to the "altura" or height aspect, which is particularly relevant when considering the transition between the vehicular roadway and the pedestrian sidewalk. This difference in level is managed by the "guarnición" or curb.The "Luz de Guarnición" (Curb Clearance)
The curb is a fundamental element separating vehicular traffic from pedestrian areas. While curbs themselves can have different total dimensions (for example, a curbstone might be 40 to 50 cm in height as a construction element), the critical measurement for pedestrians is the exposed height or the "luz de guarnición"—the difference in level between the roadway surface and the top of the sidewalk. For safety and, crucially, for accessibility, regulations stipulate that this difference in level between the vehicular roadway and the sidewalk should not exceed 15 cm in areas without specific ramps or level crossings. This 15 cm maximum height is vital for ensuring that sidewalks are reasonably accessible to individuals with mobility challenges, making it easier to step onto or off the sidewalk, even if a dedicated ramp isn't present.Level Crossings: A Leap Towards Inclusivity
While a 15 cm curb might be manageable for some, true accessibility demands even smoother transitions. This is where sidewalk-level pedestrian crossings come into play. These innovative crossings involve elevating the vehicular roadway to the same level as the sidewalk along the entire pedestrian crossing area. This design eliminates the need for ramps or steps, creating a seamless, uninterrupted path for pedestrians, especially beneficial for wheelchair users, parents with strollers, and individuals with visual impairments. Such crossings are preferably installed in specific locations, enhancing safety and convenience at intersections by giving pedestrians priority and a smoother passage.Beyond Dimensions: The Anatomy of a Pedestrian Sidewalk
A well-designed sidewalk is more than just a specified width and height; it's a carefully planned ecosystem of zones, each serving a distinct purpose.Understanding Sidewalk Zones (Franjas)

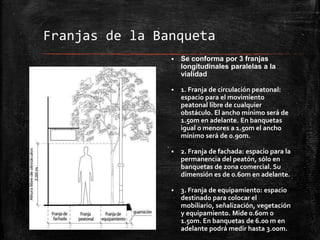

Beyond the primary pedestrian circulation strip, sidewalks are often composed of other longitudinal strips that contribute to their overall functionality and safety. These might include a "buffer zone" (between the circulation strip and the roadway, often containing street furniture or trees) and a "frontage zone" (adjacent to buildings, providing space for entrances, window shopping, or outdoor seating). These different strips are defined and specified in various documents, detailing their minimum widths, materials, and characteristics to ensure a harmonious and efficient public space.Safety Zones and Waiting Areas
At critical points like corners and intersections, additional consideration is given to pedestrian safety. Minimum safety zones at corners are defined as the sum of a "waiting area" at a pedestrian crossing plus a "transition area." The waiting area refers to the space where pedestrians can safely wait before crossing the street. It is paramount that these areas on the sidewalk, at corners, or in plazas remain free of obstacles such as vertical signage, urban equipment, or street furniture. This ensures clear sightlines and ample space for pedestrians to gather safely before entering the intersection.Guiding the Way: Markings and Urban Furniture
Visual cues and well-placed elements further enhance sidewalk functionality. The extension of pedestrian spaces can be reinforced with specific markings, such as lines 0.40 meters wide, painted at a 45-degree angle with traffic yellow alkyd paint. These markings help define pedestrian zones and guide movement. Furthermore, while urban furniture like benches, lampposts, or trash bins are essential for public convenience, their placement is critical. They must be integrated thoughtfully into the sidewalk design, typically within designated buffer zones, to ensure they do not obstruct the primary pedestrian circulation strip or create hazards. In summary, the design of pedestrian sidewalks is a meticulous process guided by comprehensive criteria and regulations. From the generous widths of the pedestrian circulation strip—ideally 1.80 meters, with common minimums of 1.20 meters and 90 centimeters in tighter spaces—to the crucial curb height, which should not exceed 15 centimeters, every dimension plays a vital role. The advent of sidewalk-level pedestrian crossings further exemplifies the commitment to creating truly accessible urban environments. By defining distinct zones, ensuring clear safety areas, and strategically placing urban elements, these guidelines provide essential tools for urban planners and designers. The ultimate goal is to craft public spaces that are not only safe and efficient but also welcoming and inclusive for all pedestrians, fostering a more walkable and vibrant urban landscape.
